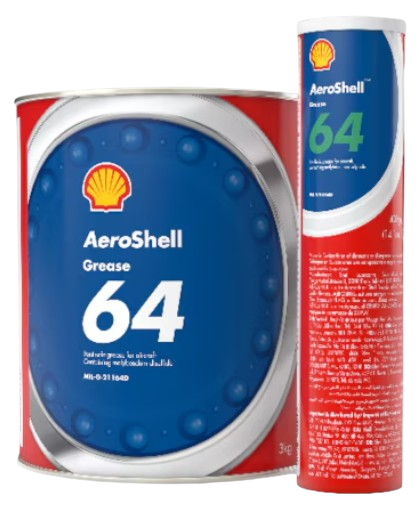

AeroShell Grease 64
Comprising of AeroShell Grease 33 fortified with 5% molybdenum disulphide, AeroShell Grease 64 delivers for airframe extreme pressure applications, ensuring superior wear and corrosion resistance.
Features and benefits
Enhanced extreme pressure protection
Advanced corrosion inhibition
Outstanding mechanical stability
Dependable fretting resistance
Wide temperature range
Compatibility with AeroShell Grease 33
Specifications & approvals
| Country / OEM | Specification |
|---|---|
| United States | MIL-G-21164D |
| British | DEF STAN 91-57 |
| French | DCSEA 353/B |
| NATO Code | G-353 |
| Joint Service Designation | XG-276 |
| Airbus | Consumable Material List (CML) Reference 03HEB1 |
| COMAC | QPL-CMS-OL-311 |
The TDS and MSDS are in English, but you can find these documents for other countries in the Shell EPC area
.
Applications
AeroShell Grease 33 has established itself as the answer to most airframer’s general-purpose airframe greasing requirements, being approved for use in Airbus, Boeing and many other aircraft types.
It sets the standard with exceptional anti-corrosion and anti-wear performance while allowing aircraft operators to shrink their grease inventory and reduce the risk of misapplication. However, there remains a small number of highly loaded, sliding applications on the airframe where the additional boost of molybdenum disulphide will always be required.
To address this need, Shell Aviation has developed AeroShell Grease 64. Sharing the same advanced grease technology as AeroShell Grease 33, AeroShell Grease 64 also possesses the extreme pressure (EP) characteristics provided by molybdenum disulphide.
Health, Safety and Environment
Health and Safety
- Guidance on Health and Safety is available on the appropriate Safety Data Sheet, which can be obtained from https://www.epc.shell.com/
Protect the Environment
- Take used lubricant to an authorised collection point. Do not discharge into drains, soil or water.
Additional information
Advice
- Advice on applications not covered here may be obtained from your Shell representative.
Get in touch with us
We’re here to assist you with any inquiries or support you may need
Typical Physical Characteristics
| Properties | Method | MIL-G-21164D | Typical |
|---|---|---|---|
| Oil type | – | – | Synthetic Hydrocarbon / Ester |
| Thickener type | – | – | Lithium Complex |
| Colour | – | – | Dark grey |
| Base Oil viscosity @40°C mm²/s | ASTM D445 | – | 14.2 |
| Useful operating temperature range °C | – | – | -73 to +121 |
| Drop point °C | ASTM D2265 | 165 min | Min 220 |
| Worked penetration @25°C | ASTM D217 | 260 to 310 | 289 |
| Penetration unworked @25°C | ASTM D217 | 200 min | 281 |
| Worked Stability 100,000 strokes, 0.1mm | FED-STD-791-313 | 260 – 375 | 310 |
| Oxidation Stability 100h @ 99°C, kPa | ASTM D942 | 68.9 max | 19 |
| Oil separation 30 hrs @100°C %m | ASTM D6184 | 5 max | 1.5 |
| Water Washout 1h @ 38°C, %m | ASTM D1264 | 20 max | 3.4 |
| Evaporation Loss 22h @ 100°C, %m | ASTM D2595 | 2.0 max | 0.77 |
| Low Temperature Torque – @-73°C Nm Start | ASTM D1478 | 0.98 max | 0.5 |
| Low Temperature Torque – @-73°C Nm Run | ASTM D1478 | 0.098 max | 0.029 |
| Four Ball EP Load Wear Index kgf | ASTM D2596 | 50 min | 68 |
| Copper Corrosion 24h @ 100°C | ASTM D4048 | 1b max | Passes |
| Rust Test 52°C, 48h | ASTM D1743 | Must Pass | Passes |
